THE WORLD’S MOST ADVANCED
CNC TUBE BENDING MACHINE
CNC TUBE BENDING MACHINE
THE WORLD’S MOST ADVANCED
CNC TUBE BENDING MACHINE

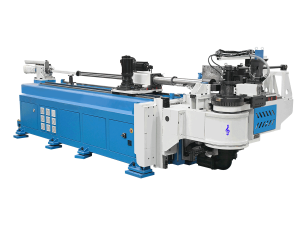

![G-Clef CNC Tube Bending MachineA89D G-Clef CNC Tube Bending Machine](http://www.g-cnc.com/wp-content/uploads/2024/07/A89D-600x450.png)
![]() |
12 axes are all driven by servo,all motions digitalized. |
![]() |
Unique eccentric design for tooling set, multi-radius bending can be finished on a one-stack tooling, maximum arc radius reaches to 5000mm. |
![]() |
Real-time feedback of clamping pressure |
![]() |
Easy to learn, no experience required for operators. |
![]() |
![]() |
![]() |

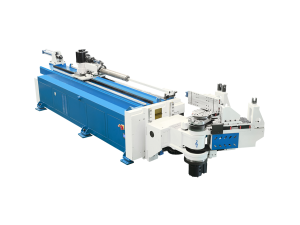

GR-CNC-A50D | GR-CNC-A89D | GR-CNC-A210D | |
---|---|---|---|
Bending Capacity | 50x3mm | 89x3mm | 210×12mm |
Bending Way | 1. single radius with single layer tooling 2. multi-radius with single layer tooling (like ellispe) 3. Eccentric bending |
1. single radius with single layer tooling 2. multi-radius with single layer tooling (like ellispe) 3. Eccentric bending |
1. single radius with single layer tooling 2. multi-radius with single layer tooling |
Bending Radius | max: unlimited min:2 times of profile diameter |
max: unlimited min:2 times of profile diameter |
max: unlimited min:2 times of profile diameter |
Bending Angle | any | any | 0-190° |
Tube Feeding Length | 5000mm max | 5000mm max | 5000mm max |
Programming | over 10,000,000 programs | over 10,000,000 programs | over 10,000,000 programs |
File Storage Capacity | 1. Input DXF or STP drawing 2. Enter values accordingly |
1. Input DXF or STP drawing 2. Enter values accordingly |
1. Input DXF or STP drawing 2. Enter values accordingly |
