G-Clef CNC Y08T roll bending machine can be used in new energy vehicles, railway transportation, escalators, aerospace, lighting, furniture, doors and windows, curtain walls, bathroom hardware and gym equipment and other industries. It can process iso-distance spiral, mosquito coil arc and rolling shutter door guide rail and other complex arcs with high precision.

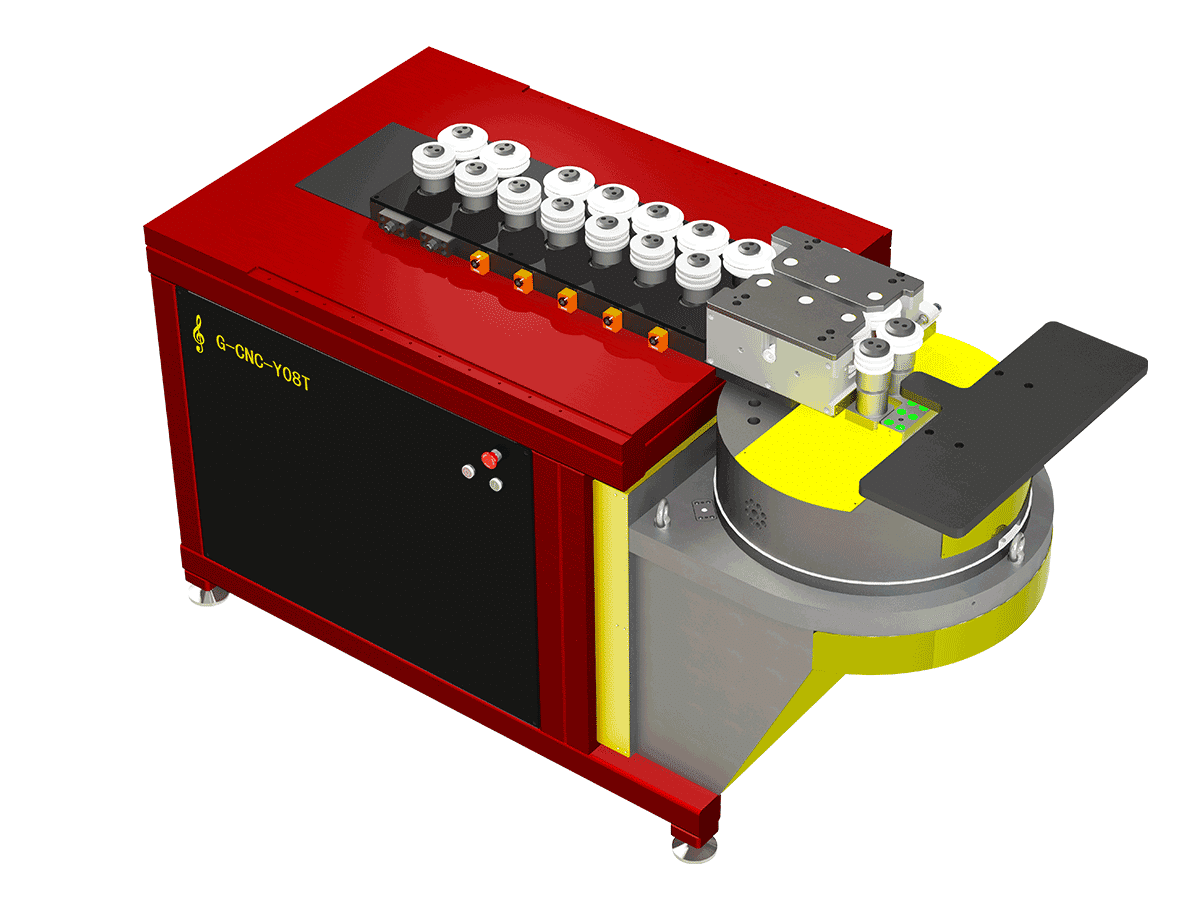

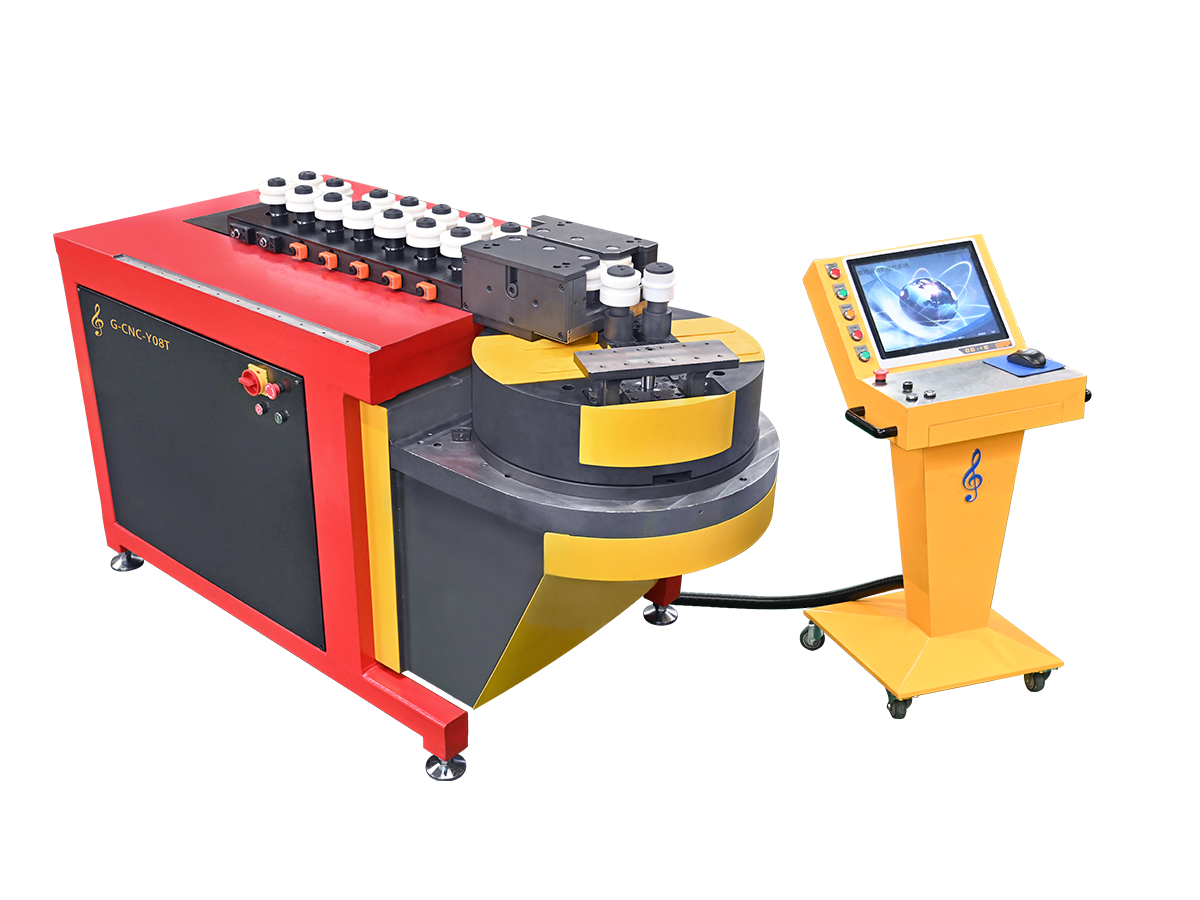

2D Roll Bending Machine G-CNC-Y08T
Description
Technical/Mechanical Data
Hydraulic Power: 8T
Profile cross-sectional area; 50*50mm(Max.)
Repositioning Accuracy: 0.01mm
Shaft Diameter: 35mm
Shaft Length: 82mm
Swing Angle: ±100°
Bending Roller Stroke: 160mm
Torque: 2350 N.m
Dimension(L*W*H): 2237*1630*1784mm

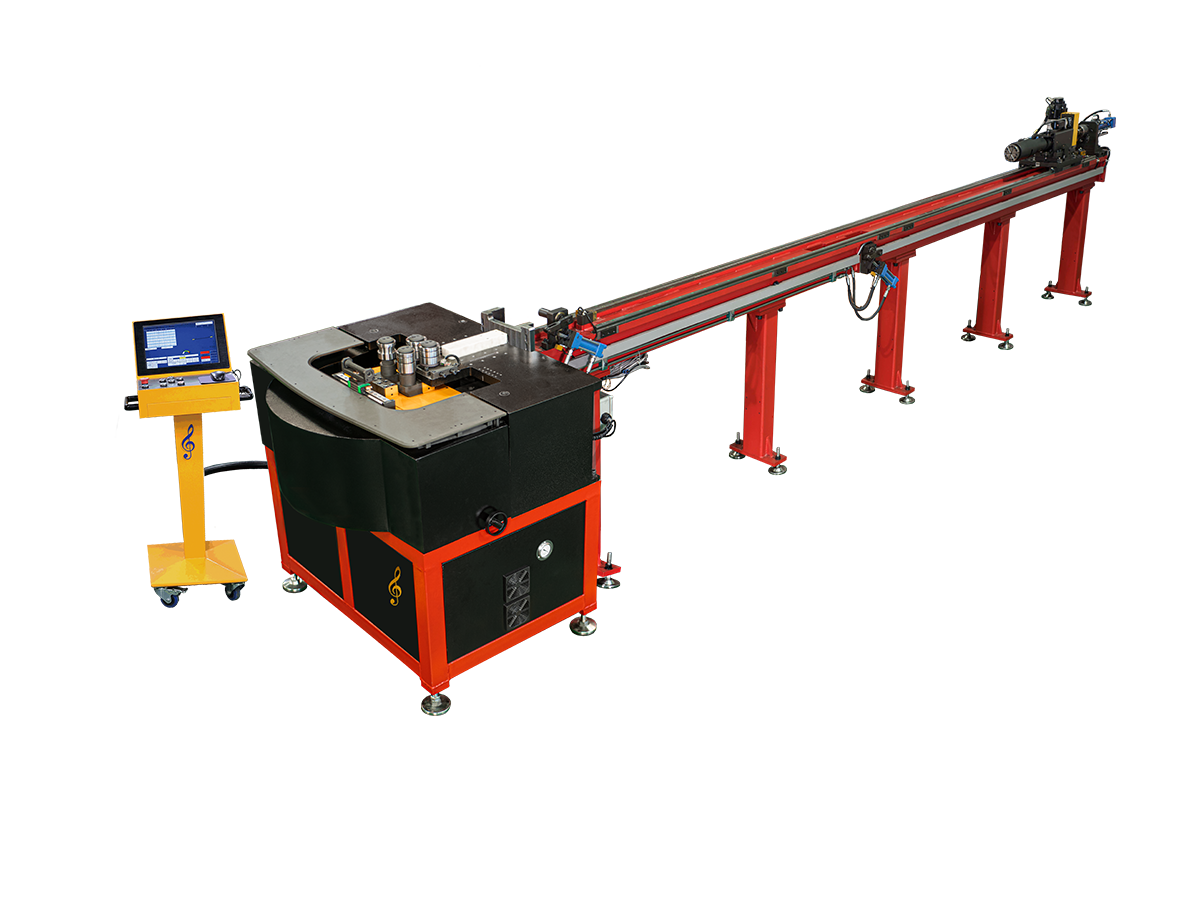

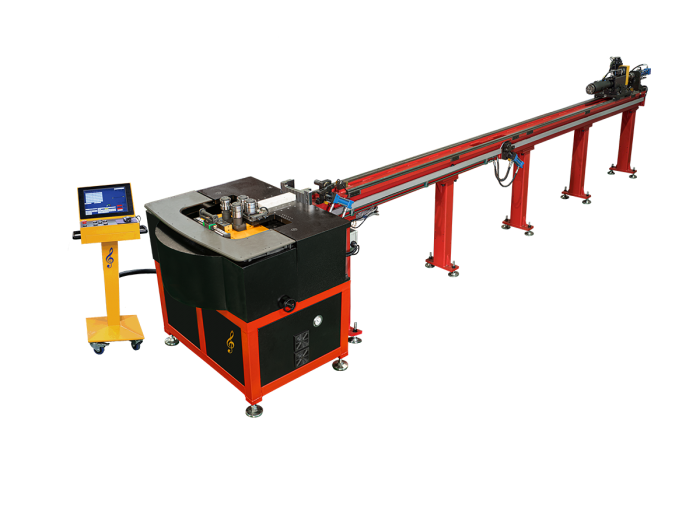

G-CNC-Y08T-D
Feeding preparation length: 6000mm
