THE WORLD’S MOST ADVANCED

THE WORLD’S MOST ADVANCED

HORIZONTAL BENDING MACHINES

HORIZONTAL BENDING MACHINES

Up to 9 independent servo axes.
Automatic CNC systems, dwg. / stp. drawings available.
4-dimensional bending of profiles
High accuracy hydraulic close-loop control system
National patent technology, unique core algorithm
Servo electric and servo hydraulic

Click to Open

Click to Open

Click to Open

MACHINE RANGE AND SPECIFICATIONS

MACHINE RANGE AND SPECIFICATIONS


Technical Data

Power, X-axis

Y/Z-axis resolution

3 individual driven rollers

Front roller distance

Tool holder

Roller length

Torque

Y/Z axis travel distance

Hydraulic drive

Roller drive

Power supply

Weight

L*W*H

G-CNC-B15T

15T

0.01mm

1-14rpm

258-518mm

60/80mm optionally

250mm

2470N.m

255mm

3.7KW

3KW

380V, 50Hz, 16.3A

1000Kg

1249*1134*1432

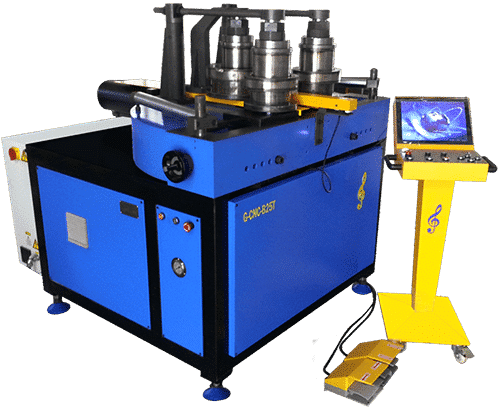

G-CNC-B25T

25T

0.01mm

1-14rpm

362-762mm

80mm

330mm

4847N.m

400mm

5.5KW

3.7KW

380V, 50Hz, 26.8A

2600Kg

2037*1300*1680

G-CNC-B40T

40T

0.01mm

1-14rpm

400-1100mm

105mm

330mm

4500N.m

500mm

5.5KW

4.4KW

380V, 50Hz, 52A

3000Kg

1855*1630*1748
